ANSI/BHMA A156.10 10 Million Cycle Rating Manufactured in Texas

Revolution Sliding Door — DT-3000

Rod-and-bearing drive eliminates track entirely. I-beam header. Self-diagnosing controller. No programmer required. 1-year warranty + 5-year on rod & bearing.

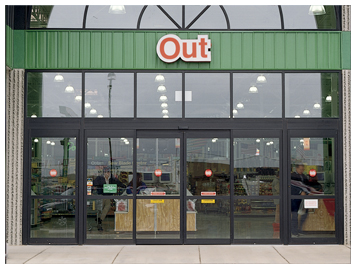

Doortronix Revolution biparting sliding door

A Fundamentally Different Drive System

Every other automatic sliding door on the market uses a track-and-roller system. When rollers wear, panels drop. When debris collects in the track, the door binds. "Door off track" accounts for 85% of all automatic door service calls.

The Revolution uses a 1-inch chrome steel rod with a precision linear motion bearing. No track. No rollers. Nothing to jump, nothing to fill with grit, nothing to wear and sag. The panel rides the bearing — period.

1" chrome steel rod + linear motion bearing drive
Structural I-beam header — no deflection under load
DC motor, 1/5 HP with Kevlar timing belt
Microprocessor controller — self-diagnoses, displays fault codes
Full perimeter breakout capability (FBO configurations)
Magnetic breakaway sidelights — no ball catches
Full-height extruded interlocks — no air gap
Electronics manufactured in the USA

Technical Specifications — DT-3000

CSI Section 08 42 29 — Automatic Sliding Door Systems

Parameter	Specification
Model	Doortronix DT-3000
Drive System	1" chrome steel rod with linear motion bearing (no track/rollers)
Motor	DC, 1/5 HP, variable speed
Drive Belt	Kevlar reinforced timing belt
Header	Structural I-beam aluminum — zero deflection
Controller	Microprocessor with LED self-diagnostics, no handheld programmer required
Cycle Rating	10,000,000 cycles
Opening Speed	Adjustable — standard commercial through high-speed
Configurations	Bi-parting (SO-SX-SX-SO), Single slide, FBO, FSL, ESA (Exterior Surface Applied)
Panel Assembly	Clip-and-screw — no welded frames
Sidelights	Magnetic breakaway — full-width release, no ball catches
Interlocks	Full-height extruded aluminum — no air infiltration gap
Electronics	Made in USA
Finishes	Clear anodized, dark bronze, black, white, custom powder coat
Glazing	Clear tempered, low-E, tinted, frosted, lead-lined (specify)
Power	120V AC standard, 208/240V available
Battery Backup	Optional — maintains operation during power outage
Sensor	Microwave or infrared activation (specify)
ADA Compliance	Meets ADA / ANSI A117.1 when configured to ADA timing
Standards	ANSI/BHMA A156.10, CSA B651
Lead Time	3–4 weeks from approved drawings — call to confirm current lead times
Warranty	1-year limited system warranty; 5-year warranty on rod and bearing
Origin	Manufactured in Malakoff, Texas

Configurations

The Revolution ships in three primary breakout configurations — specify by opening type.

🔄

ESA — Exterior Surface Applied

Surface-applied package. Header and panels mount to the face of the wall (P-SX-SX-P). Sliding panels park beside the opening. Used when the unit cannot sit in a framed rough opening.

🚪

FBO — Full Breakout Open

Both active panels and sidelights break out in the direction of egress. Required by many AHJs for emergency egress in high-occupancy applications. Download FBO drawings →

↔️

FSL — Full Side Light

Full-height sidelight panels that breakout independently. Used in vestibule configurations and where the sidelight width contributes to the required egress width.

Bi-parting or single slide? Both are available in all three breakout configurations. Specify LH or RH swing for single-slide FBO/FSL. Standard bi-parting opening is SO-SX-SX-SO. Custom panel splits available on request.

For Architects — CSI Specification Language

Drop this directly into your project manual. Full-length CSI spec available in the Resources section.

      SECTION 08 42 29 — AUTOMATIC SLIDING DOOR SYSTEMS

      2.01 MANUFACTURER

          A. Doortronix Inc., Malakoff, TX. (888) 453-5196.

              www.DoortronixUSA.com

      2.02 AUTOMATIC DOOR OPERATOR

          A. Model: Doortronix DT-3000

          B. Drive: 1-inch chrome steel rod with linear motion bearing.

              No track or roller assemblies.

          C. Header: Structural I-beam — no deflection.

          D. Motor: DC, 1/5 HP variable speed.

          E. Controller: Microprocessor, self-diagnosing,

              no handheld programmer required.

          F. Cycle rating: 10,000,000 cycles.

          G. Standards: ANSI/BHMA A156.10, CSA.

View Full CSI Spec → Request a Quote
